Your Off-Road Troti-Bike, Ready to Ride

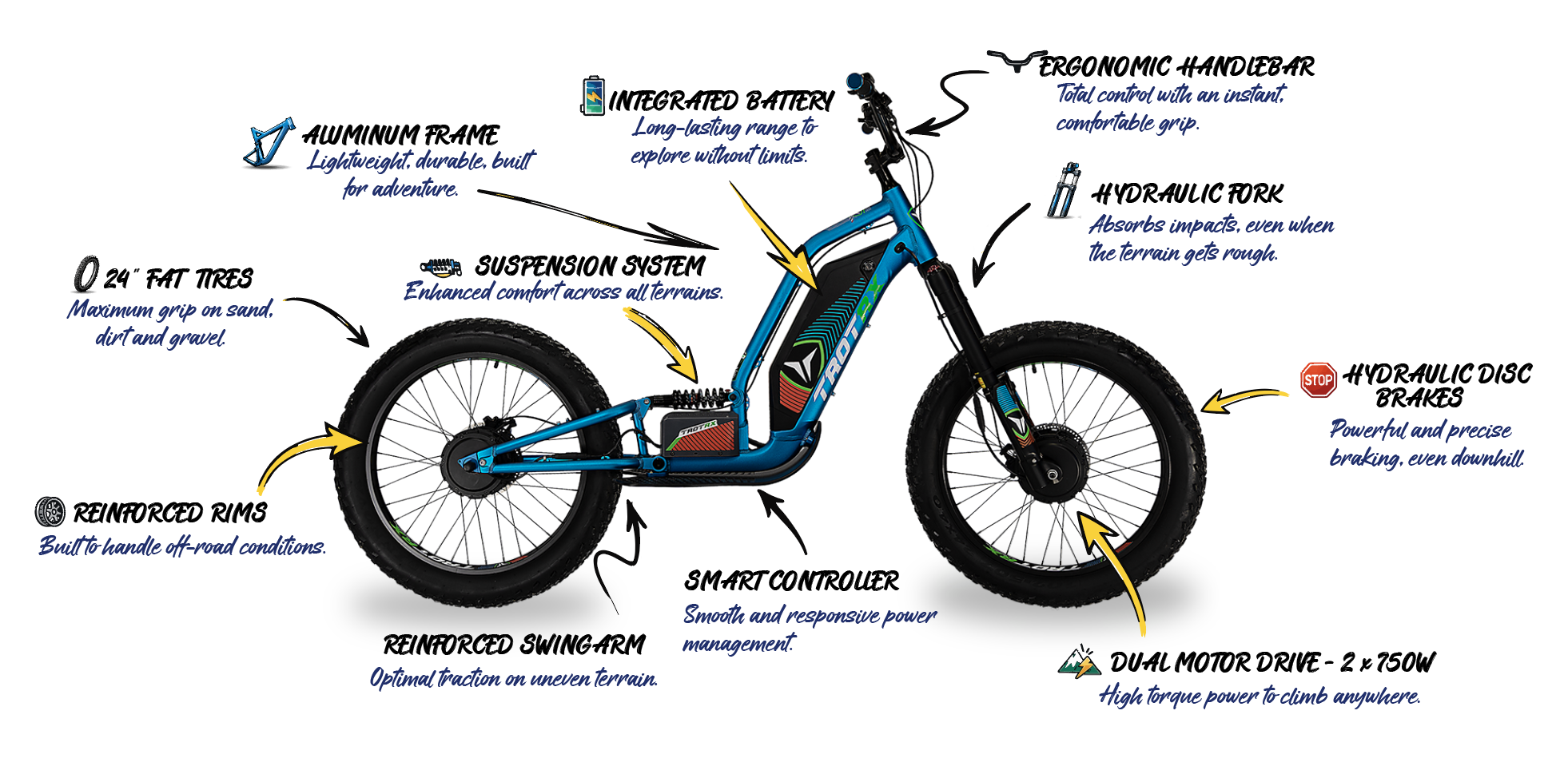

TECHNICAL FEATURES

Reinforced aluminium frame, hand welded using TIG, with blue anodised finish. Specific anodising process without paint to ensure optimum resistance to impacts, sunlight and long term durability.

Removable integrated 48V 25Ah, 1200Wh battery with Samsung 21700, 50, S cells, equipped with safety fuses.
* Possibility to use an additional backpack battery, 48V 23.4Ah, to increase range.

24″ wheels, FAT 24×4.00 tyres. The 24’’ Fat wheels provide comfort and maximum stability. This is the most effective version for highly technical and rocky terrain.

Motor, 48V 2x750W geared*.

*Geared, There are 2 types of motors on the market.

Geared motor, equipped with a reduction system. When the wheel turns once, the motor turns one and a half times, significantly increasing torque. Ideal for hill starts and off road use while saving battery power. This motor is about 3 kg lighter than a direct drive motor of equivalent power.

Direct drive motor, unlike the geared motor, to compensate for lower efficiency at startup, a more powerful controller is required, leading to higher battery consumption.


As with bicycles, the sTroti-Bike requires a different handlebar height depending on the rider’s height. You can choose between 3 handlebar heights.

80 mm
130 mm
180 mm

Brakes
Hydraulic disc brakes from Bengal, 180 mm front and rear, ensuring optimal braking in all conditions.

Footboard, Skid plate, Versatile
More ergonomic and wider at the rear, allowing you to adjust your position between flat sections and technical passages.

Rear wheel specification
Developed by us over several years, the removable rear dropout allows the wheel to centre automatically and enables quick removal using a single 6 mm Allen key.

Additional accessories
Front, rear mudguards
Luggage rack
Side bags
Handlebar bag

All components are selected for their quality and durability. They are designed to withstand several years of intensive use, except wear parts such as tyres and brake pads.

ON THE TRAIL

This two wheel drive version remains highly reliable, with quick and easy handling. It is very versatile, allowing heavier riders to have a robust and dependable machine in all situations. The additional motor helps with obstacles and steep terrain.

You can use it for leisure, discovery rides, sport trails, or as a utility vehicle by adding our reinforced luggage rack, allowing attachment of a top case, crate or transport bags.

The integrated battery provides greater freedom. The slightly longer frame increases confidence on descents and fast sections.

SPECIFICATIONS

Frame, Reinforced aluminium TIG welded, blue anodised finish
Fork, TROTRX 140 mm hydraulic fork, adjustable rebound and compression
Shock absorber, DNM 200×60
Brakes, Hydraulic BENGAL, 180 mm discs
Handlebar, Aluminium h.130 mm X780 mm standard, or 80 mm or 180 mm for taller riders
Stem, Aluminium 60 mm
Headset, FSA Taper
Rims, TROTRX™ reinforced double wall 36T
Tyres, INNOVA FAT 24×4.00
Motorisation, 2x750W geared*
Integrated battery, Lithium ion 48V 25Ah, 1200Wh, Samsung 21700 cells, with 3 safety fuses
Controller, 2x25Ah waterproof
Charger, 5Ah
Speed, Limited to 25 km,h
Weight, 34.8 kg
Length, 1m98
Repairability index, 10 years
Legal warranty, 2 years
Commercial warranty, 5 years for the frame
